TKX 5-speed manual transmission 64-73

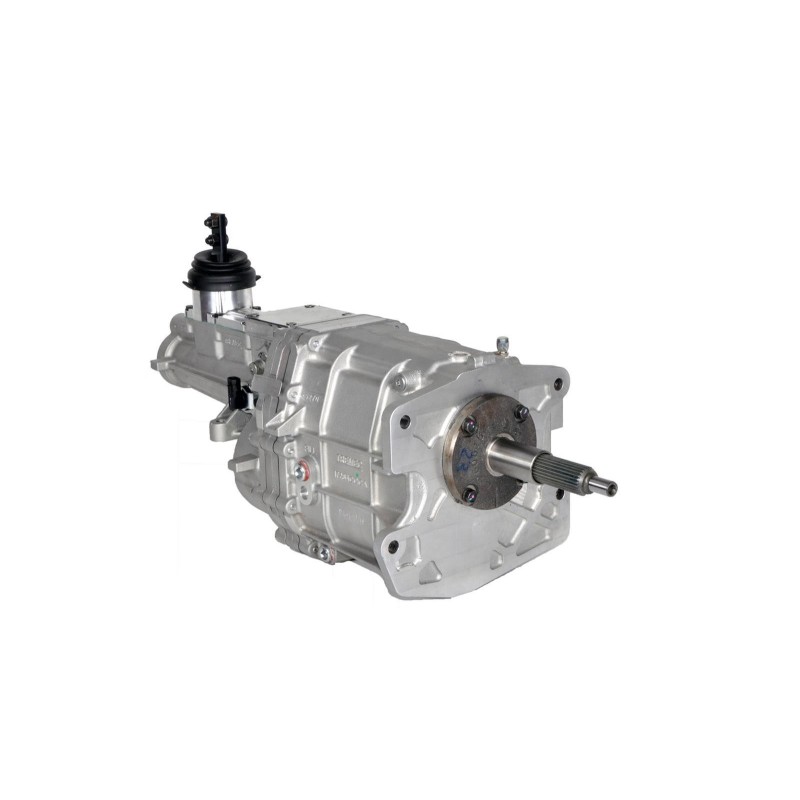

Tremec TKX 5-speed RWD manual transmission

Better fit:

Tremec has retained the best features of the TKO while optimizing the housing. They switched from the old top-load design to an end-load design – similar to the extremely robust Magnum. As a result, the TKX is significantly stronger and more compact.

• Suitable for a wide range of applications with limited installation space

• Requires minimal or no modifications to the vehicle floor

Improved performance:

The new design enables smooth gear changes at high speeds (up to 7,500 rpm) thanks to multiple conical synchronous rings and hybrid synchronous rings, with a load capacity of up to 600 lb-ft of torque .

• Optimized NVH values (noise, vibration, roughness)

• Reinforced, ribbed aluminum housing in 3 parts for stability and strength

• Extra-wide gears made of ASTM 4615 steel for maximum durability

• Seals on all flanges to prevent oil loss

• Needle bearing cages in all gear positions

Characteristics:

• Completely new 5-speed gearbox with simple overdrive

• Designed for 600 lb-ft torque , 8,000 rpm engine speed , 7,500 rpm shifting operations

• Three-piece aluminum housing for high strength

• Sealed flanges to prevent oil loss

• Multiple conical synchronizer rings for excellent shifting feel

• Gear layout to reduce stress and NVH

• Compact design with three gearshift lever positions

• 26-tooth input shaft , 31-tooth output shaft

• Integrated reversing light switch and cruise control safety switch

• Ford housing pattern, input and transmission mount configuration

• Included shift lever (rear-mounted, reversible), compatible with most Hurst® levers

Technical data:

Technical specifications & scope of delivery:

• Suitable for Ford Mustang models from 1964 to 1973 with 6-cylinder or V8 engine

• Delivery in pieces

• Installation requires a suitable bell housing/adapter flange and a different rear gearbox support.

• The length of the cardan shaft may need to be adjusted.
