Manual transmission TKX 5-speed 64-73

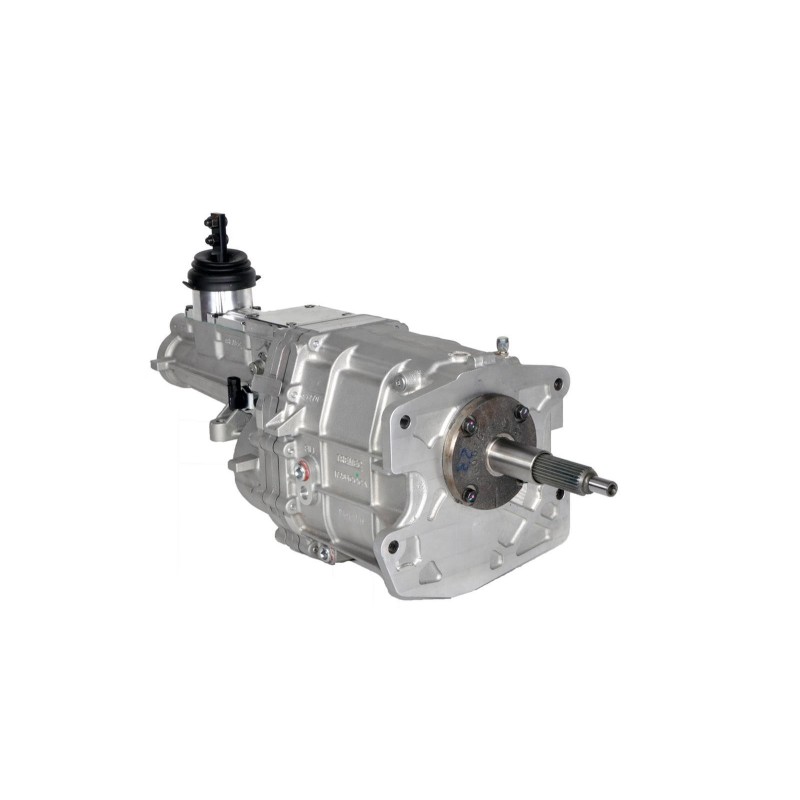

Tremec TKX 5-speed RWD manual transmission

Better fit:

Tremec retained the best features of the TKO while optimizing the housing. They switched from the old top-loading design to an end-loading design – similar to the extremely robust Magnum. This makes the TKX significantly stronger and more compact.

• Suitable for a wide range of applications with limited space

• Requires minimal or no modification to the vehicle floor

Better performance:

The new design enables smooth shifting at high speeds (up to 7,500 rpm) thanks to multi-cone synchronizers and hybrid synchronizers, while handling up to 600 lb-ft of torque .

• Optimized NVH values (noise, vibration, harshness)

• Stiffened, ribbed aluminum housing in 3 parts for stability and strength

• Extra-wide gears made of ASTM 4615 steel for maximum durability

• Seals on all flanges to prevent oil loss

• Needle bearing cages in all gear positions

Characteristics:

• Completely new 5-speed transmission with simple overdrive

• Rated for 600 lb-ft torque , 8,000 rpm engine speed , 7,500 rpm shifts

• Three-piece aluminum housing for high strength

• Sealed flanges against oil loss

• Multiple cone synchronizer rings for excellent shifting feel

• Gear layout to reduce stress and NVH

• Compact design with three gear lever positions

• 26-tooth input shaft , 31-tooth output shaft

• Integrated reversing light switch and cruise control safety switch

• Ford housing pattern, input and transmission mount configuration

• Included shift lever (rear mounted, reversible), fits most Hurst® levers

Technical data:

Technical specifications & scope of delivery:

• suitable for Ford Mustang from 1964 to 1973 with 6-cylinder or V8 engine

• Delivery in pieces

• For installation, a suitable gearbox bell / adapter flange and a different rear gearbox carrier are required

• The length of the cardan shaft may need to be adjusted
