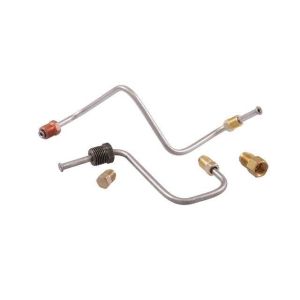

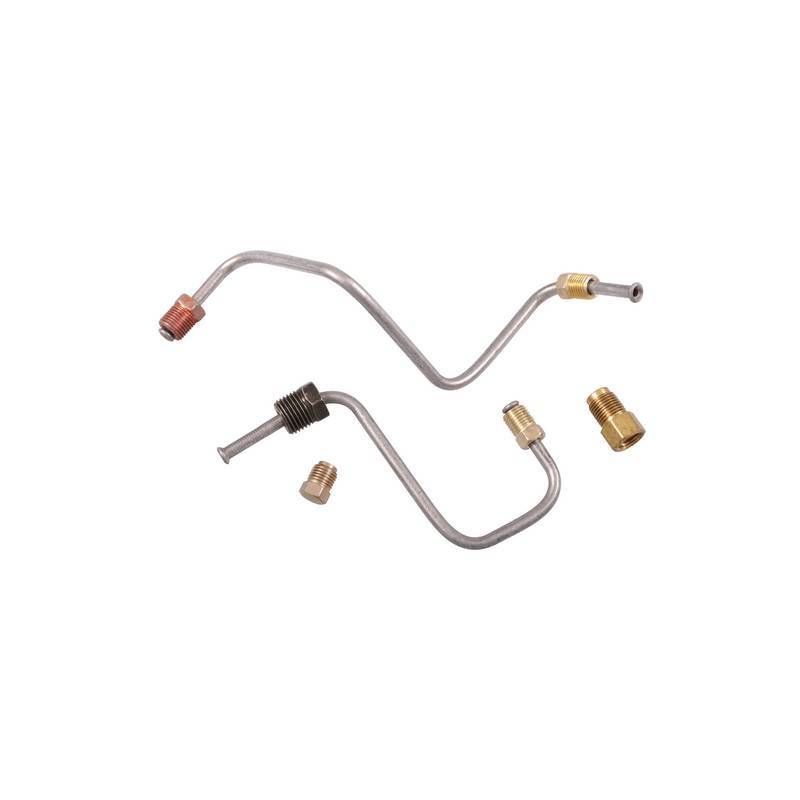

Lines Conversion Single-Circuit Dual-Circuit Disc Brake 64-66

Wiring kit for conversion to dual-chamber master cylinder

Suitable for front disc brakes and rear drum brakes

Includes a pair of pre-bent lines, a sealing plug, and a connecting fitting

Connections:

- 1/2"-20 inverted flare connection on the master cylinder side × 3/8"-24 inverted flare connection on the distribution block side

- 3/8"-24 inverted flare connection on the master cylinder side × 3/8"-24 inverted flare connection on the distribution block side

All required connection ends are SAE-compliant double flared

The steel brake lines have a galvanization-like coating that simulates the original Terne coating

fits Ford Mustang from 1964 to 1966

Delivered as a set

Note, in some distribution blocks, the original connection between single-circuit master cylinder and distribution block is made with a larger 7/16-24 thread.

In this case, you will need an adapter from 3/8" to 7/16", item number 8713.

Alternatively, the original 4-way distributor can also be replaced with a suitable 3-way distributor with item number 835. This saves the adapter and sealing of the fourth connection, which is no longer needed after the conversion.
