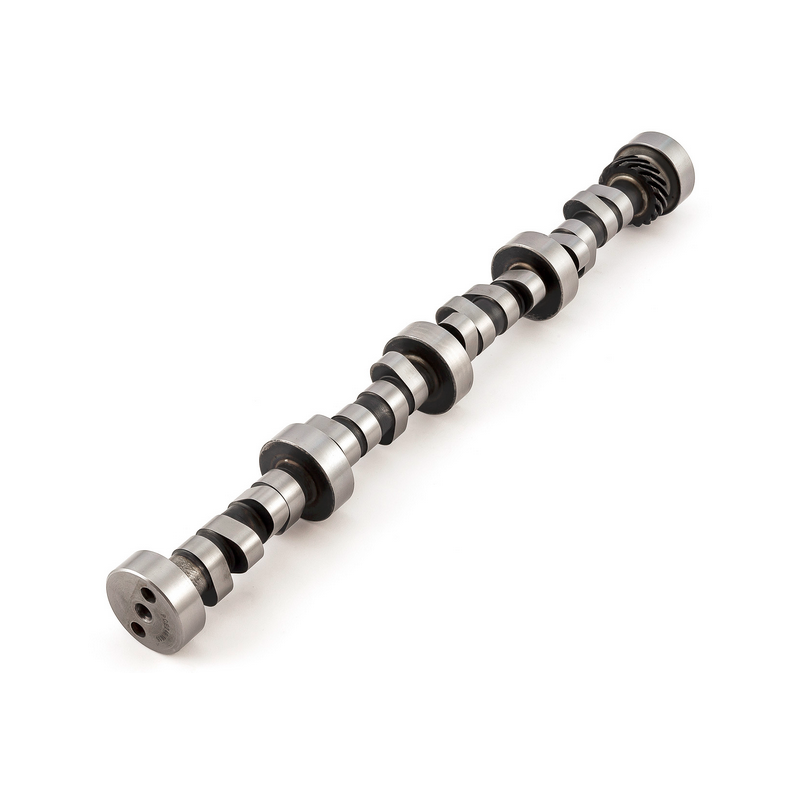

Hydraulic Roller Camshaft 289 302 351W

• Modern roller camshaft, for hydraulic tappets with rollers

• Ignition sequence as with the 351W and 5.0HO: 1-3-7-2-6-5-4-8

• Can be used for 289, 302 and 351W engines when converted to roller hydraulic tappets

• Camshaft made of steel, instead of cast like the original, which is why the pinion on the distributor must also be adapted to steel

• Due to the larger valve overlap, slightly less vacuum is available than with the original camshaft

• Also very suitable for 347 and 408 stroker engines

• Technical data:

Cam Style: Hydraulic roller, Retro-fit

Basic Operating RPM Range: 2,000-6,000

Intake Duration at 050 inch Lift: 230

Exhaust Duration at 050 inch Lift: 236

Duration at 050 inch Lift: 230 int./236 exh.

Advertised Intake Duration: 282

Advertised Exhaust Duration: 289

Advertised Duration: 282 int./289 exh.

Intake Valve Lift with Factory

Rocker Arm Ratio: 0.513 in.

Exhaust Valve Lift with Factory

Rocker Arm Ratio: 0.529 in.

Valve Lift with Factory Rocker Arm Ratio: 0.513 int./0.529 exh.

Lobe Separation (degrees): 110

Computer-Controlled Compatible: No

Valve Springs Required: Yes

Quantity: Sold individually.

Notes: Must use 351W Firing Order:

1 - 3 - 7 - 2 - 6 - 5 - 4 - 8
