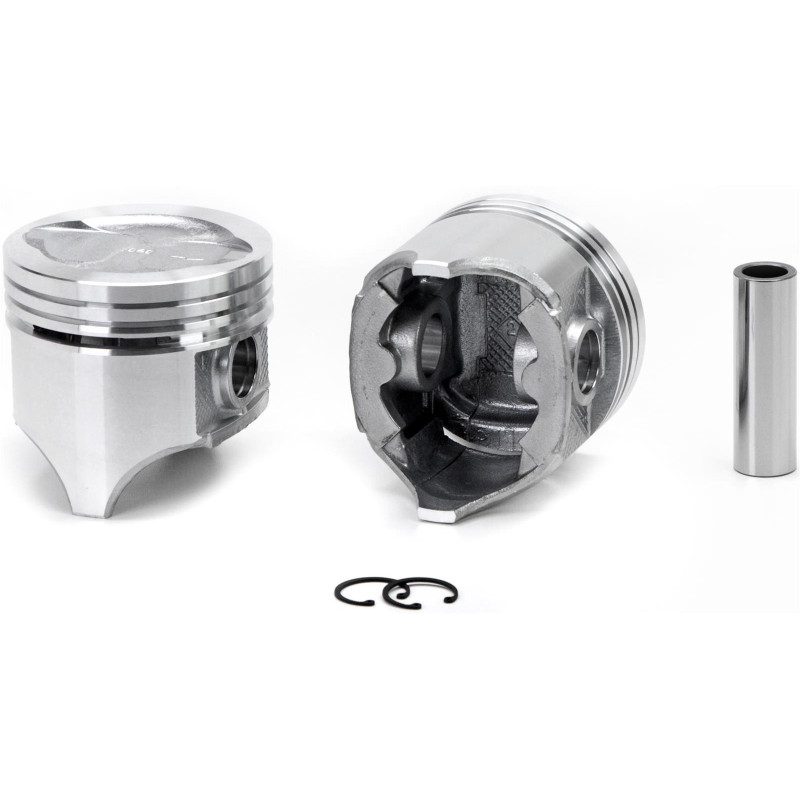

Pistons (8 pieces) 390FE 030" oversize, Mustang 1967-1973
High quality piston kit for the 390FE engine from Silv-o-Lite
The pistons are 0.030" oversize
Complete set consisting of 8 pistons
| SILV-O-LITE 1130 specifications | |
|---|---|
| Bore Diameter (IN) | 4.05 |
| Bore Diameter (MM) | 102.9 |
| Compression Height (inch) | 1.76 |
| Compression Height (mm) | 44.7 |
| Compression Ratio | 9.5 |
| Crown (cc) | +19cc |
| Crown Type | Court |
| Engine Family | Ford Big Block FE |
| Engine Manufacturer | FORD |
| Locks | 98 |
| Oil Ring Thickness (inches) | 0.1875 |
| Pin Configuration | Offset |
| Pin Number | 0975x305A |
| Pin Type | Floating |
| Piston Head Type | Dish |
| Piston Material | Cast Alloy 332 |
| Piston Pin Outside Diameter (inch) | .975 |
| Piston Pin Outside Diameter (mm) | 24.8 |
| Second Compression Ring Thickness (inch) | 0.0938 |
| Top Compression Ring Thickness (inches) | 0.0781 |
| Top Land | .307 |
Data sheet
Pistons (8 pieces) 390FE 030" oversize, Mustang 1967-1973
